HX5008NL | Pulse Electronics GmbH

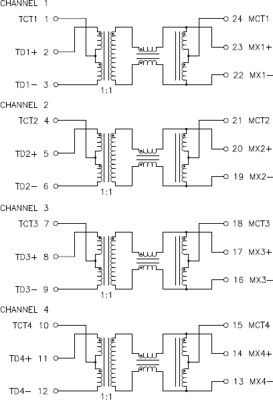

LAN transformer, 1:1, 350 µH, HX5008NL
Unit Price (€ / pc.)
10.8171 € *
Standard delivery time from the manufacturer is: On Request
Telecom Transformer HX5008NL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 350 µH | |
| Product type | LAN transformer | |
| Height | 6.37 mm | |
| max. operating temperature | 85 °C | |
| max. frequency | 100 MHz | |
| Design | SMD | |
| Length | 13.16 mm | |
| min. frequency | 1 MHz | |
| min. operating temperature | -40 °C | |
| Width | 15.11 mm | |
| Winding ratio | 1:1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366980 |
| Original Packaging | Bar with 35 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
