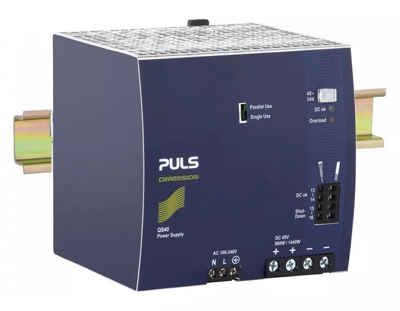

QS40.481 | PULS
Power supply, 48 to 54 VDC, 20 A, 960 W, QS40.481
Unit Price (€ / pc.)
677.11 € *
Standard delivery time from the manufacturer is: 2 Weeks
Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 20 A output current, type QS40.481.
Input voltage: 100 to 240 VAC. Output ripple: 150 mVpp. Dimensions: W 125, H 124, D 127 mm. Weight: 1900 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QS40.481, 48 V, 960 W, 27/27 ms, 93.9//95 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 127 mm | |
| Height | 124 mm | |
| efficiency | 95 % | |
| Output current | 20 A | |
| Width | 125 mm | |
| Number of outputs | 1 | |
| Power | 960 W | |
| Degree of protection (IP) | IP20 | |
| Output voltage DC | 48 to 54 VDC | |
| Input voltage AC | 100-240 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
