QS40.241 | PULS

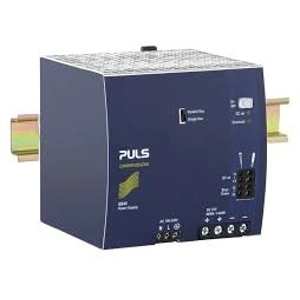

Power supply, 24 to 28 VDC, 40 A, 960 W, QS40.241
Unit Price (€ / pc.)
599.6291 € *
Standard delivery time from the manufacturer is: 8 Weeks
DIN-rail power supplies for 1-phase systems, QS40.241, PULS
Features
- AC 100-240V wide range input
- width only 110mm, weight only 1,9kg
- 94.6% full load efficiency and excellent partial load efficiency
- 110A peak current for 10ms to trigger fuses
- Negligible inrush current
- Load sharing for parallel operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 40 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC | |
| Power | 960 W | |
| efficiency | 94.6 % | |
| Degree of protection (IP) | IP20 | |
| Width | 125 mm | |
| Height | 124 mm | |
| Depth | 127 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
