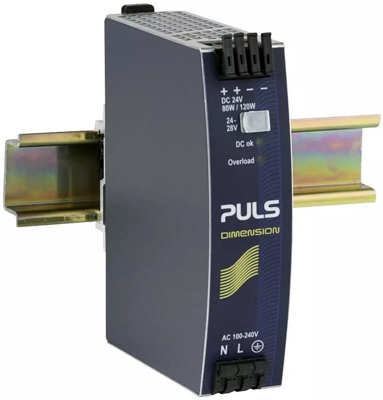

QS3.241 | PULS
Power supply, 24 to 28 VDC, 3.4 A, 80 W, QS3.241
Discontinued
Unit Price (€ / pc.)
172.4310 € *
Available: 16 pcs.
Total Price:
172.43 € *
Price list
Quantity
Price per unit*
1 pcs.
172.4310 €
5 pcs.
163.8035 €
10 pcs.
154.6405 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 3.4 A output current, type QS3.241.
Input voltage: 100 to 240 VAC (±15 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. MTBF: 1451 kh. Dimensions: W 32, H 124, D 102 mm. Weight: 440 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QS3.241, 24 V, 72 to 82 W, 41/174/-/- ms, 88.7/90/-/- %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 102 mm | |
| Height | 124 mm | |
| efficiency | 90 % | |
| Output current | 3.4 A | |
| Width | 32 mm | |
| Number of outputs | 1 | |
| Power | 80 W | |
| Degree of protection (IP) | IP20 | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
