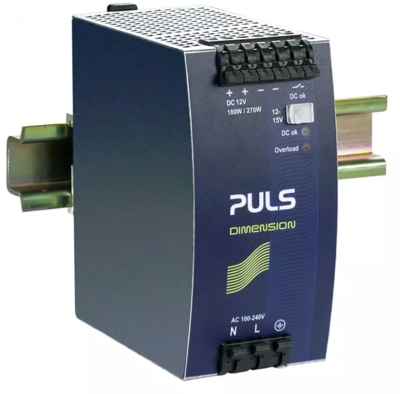

QS10.121 | PULS
Power supply, 12 to 15 VDC, 15 A, 180 W, QS10.121
Unit Price (€ / pc.)
306.1989 € *
Standard delivery time from the manufacturer is: On Request
Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 15 A output current, type QS10.121.
Input voltage: 100 to 240 VAC (±15 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. MTBF: 631 kh. Dimensions: W 60, H 124, D 117 mm. Weight: 930 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QS10.121, 12 to 15 V, 180 W, 32/32/-/- ms, 91.5/91.8/-/- %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 124 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 15 A | |
| Width | 60 mm | |
| efficiency | 91.8 % | |
| Number of outputs | 1 | |
| Input voltage AC | 100-240 VAC, 110-150 VDC | |
| Power | 180 W | |
| Output voltage DC | 12 to 15 VDC | |
| Depth | 117 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
