ML100.200 | PULS

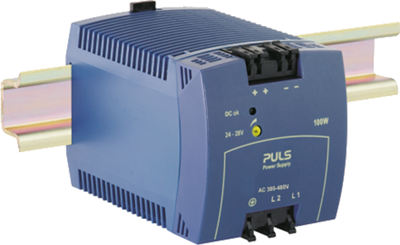

Power supply, 24 to 28 VDC, 4.2 A, 100 W, ML100.200
Unit Price (€ / pc.)
170.0391 € *
Standard delivery time from the manufacturer is: On Request
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Dual-phase, 4.2 A output current, type ML100.200.
Supports parallel and series mode; Input voltage: 2 x 380 to 480 (±15), 600 VDC (-25/+35 %). Output ripple: 50 mVpp. Connections: spring force. MTBF: 1594 kh. Additional certifications: CSA. Dimensions: W 72.5, H 75, D 103 mm. Weight: 360 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML100.200, 24 V, 90 to 100 W, 48/85 ms, 89.5/89 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 103 mm | |
| Height | 75 mm | |
| Power | 100 W | |
| Output voltage DC | 24 to 28 VDC | |
| efficiency | 89.5 % | |
| Degree of protection (IP) | IP20 | |
| Output current | 4.2 A | |
| Number of outputs | 1 | |
| Width | 73 mm | |
| Input voltage AC | 380-480 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
