ML100.105 | PULS

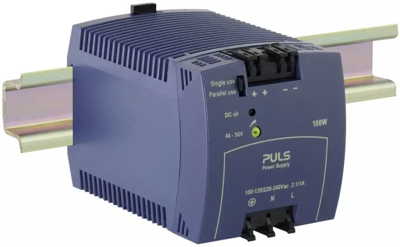

Power supply, 48 to 56 VDC, 2.1 A, 100 W, ML100.105
Unit Price (€ / pc.)
165.9574 € *
Standard delivery time from the manufacturer is: On Request
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 2.1 A output current, type ML100.105.
Supports parallel and series mode; Input voltage: 100 to 120/200 to 240 VAC (-15/+10 %), 260 to 300 VDC (-15/+25 %). Output ripple: 50 mVpp. Connections: spring force. MTBF: 1671 kh. Additional certifications: cUL. Dimensions: W 72.5, H 75, D 103 mm. Weight: 360 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML100.105, 48 V, 100 W, 38/44 ms, 90.4/91.8 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 103 mm | |
| Height | 75 mm | |
| Power | 100 W | |
| Output voltage DC | 48 to 56 VDC | |
| efficiency | 91 % | |
| Degree of protection (IP) | IP20 | |
| Output current | 2.1 A | |
| Number of outputs | 1 | |
| Width | 73 mm | |
| Input voltage AC | 100-120 VAC, 220-240 VAC, 290 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
