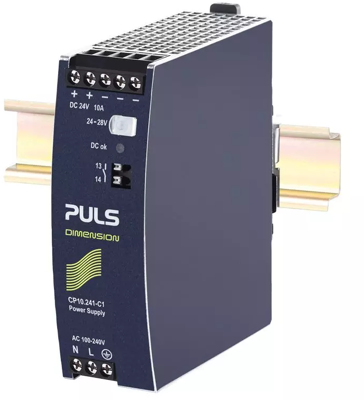

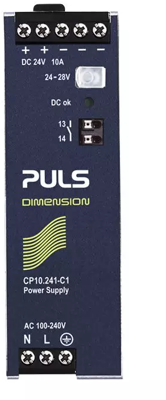

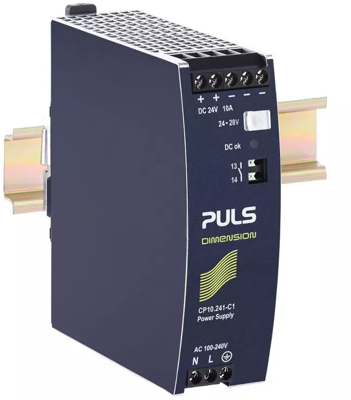

DIN rail power supply, 24 to 28 VDC, 10 A, 240 W, CP10.241-C1
Unit Price (€ / pc.)
240.8798 € *
Standard delivery time from the manufacturer is: On Request
Power supply, CP10.241-C1, PULS
The CP10.241-C1 is high-end power suppliy in a medium price range without compromising quality, reliability and performance. The most outstanding features of CP10.241-C1 is the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.
This device is designed for installation in an enclosure and is intended for commercial use, such as in industrial control, process control, monitoring and measurement equipment or the like.
Features
- Width only 39 mm
- Excellent Partial Load Efficiency
- Easy Fuse Breaking due to High Overload Peak Current
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Width | 39 mm | |
| Depth | 117 mm | |
| Output voltage DC | 24 to 28 VDC | |
| Degree of protection (IP) | IP20 | |
| efficiency | 95.2 % | |
| Output current | 10 A | |
| Power | 240 W | |
| Input voltage AC | 100-240 VAC, 110-150 VDC | |
| Height | 124 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
