4004/G-C-0.6N-RH-2.5 | PTR

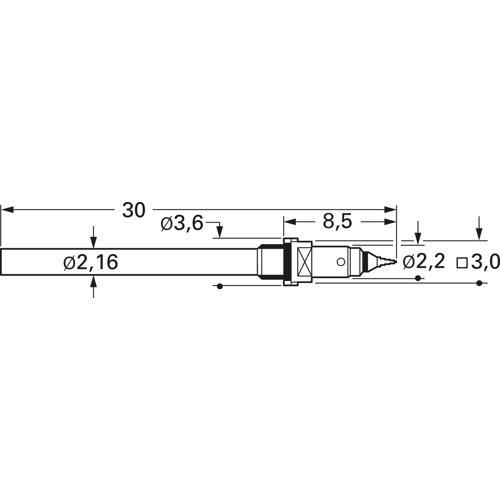

Pneumatic spring contact with probe, waffle, Ø 2.16 mm, travel  10 mm, pitch 4 mm, L 30 mm, 4004/G-C-0.6N-RH-2.5

Order No.: 12H2548
EAN: 4099889469691
MPN:
4004/G-C-0.6N-RH-2.5
640040120
Series: 4004
4004/G-C-0.6N-RH-2.5 PTR Contact Probes
Image may differ
Unit Price (€ / pc.)
30.5711 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
30.57 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5711 €
10 pcs.
27.0249 €
100 pcs.
23.5025 €
250 pcs.
21.7413 €
1000 pcs.
19.9801 €
*incl. VAT plus shipping costs
Subject to prior sale

Pneumatic spring force contacts, type PTR 40.

Design A: concave 90°, For connector pins, wire-wrap posts and straight / bent terminals. To be used on clean PCB because of the risk of contamination. Design BST1: sharp steel needle with extended tool life, for reliable penetration of flux and dirt and for contacting SMD components. Design C: universal serrated tip, for straight and bent hookup wires, wire-wrap posts and connector pins. Design G: four-point crown, for hookup wires, solder joints and test pads without heavy contamination. Design V: lance, for open and closed vias, as well as planar contact areas; penetrates flux and dirt.

Spring-loaded pneumatic contacts, type 4004/G.

Grid: 4.0 mm. Operating pressure: 6.0 bar. Operating medium: compressed air (filtered, oil-free). Maximum travel: 10 mm. Working travel: 6.0 mm. Spring force at working travel (±20 %): 0.6 N. Current load: max. 2.0 A. Contact resistance: typically 30 mohm. Barrel: gold-plated brass. Spring: gold-plated spring steel.

Technical attributes (type, tip shape, tip diameter, plunger material): 4004/G-C-0,6 N-Rh-2,5, C, D 2.5 mm, steel.

Technical specifications
Filter Property Value
Head shape waffle
Rated current 2 A
Stroke 10 mm
Grid 4 mm
Length 30 mm
diameter 2.16 mm
Material brass
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
