3014/2G-F-1.5N-AU-3.0 C | PTR

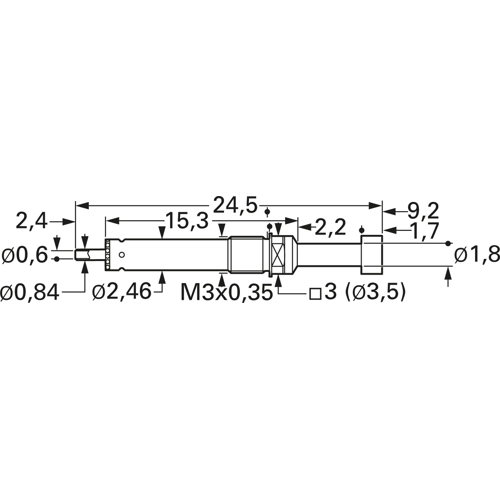

Switch spring contact with probe, flathead, Ø 2.46 mm, travel  5 mm, pitch 4 mm, L 24.5 mm, 3014/2G-F-1.5N-AU-3.0 C

Order No.: 12H2512
EAN: 4099889469653
MPN:
3014/2G-F-1.5N-AU-3.0 C
Series: 3014/G
3014/2G-F-1.5N-AU-3.0 C PTR Contact Probes
Image may differ
Unit Price (€ / pc.)
37.8658 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
37.87 € *
Price list
Quantity
Price per unit*
1 pcs.
37.8658 €
10 pcs.
33.4866 €
100 pcs.
29.1431 €
250 pcs.
26.9416 €
1000 pcs.
24.7758 €
*incl. VAT plus shipping costs
Subject to prior sale

Precision switching spring contacts, type PTR 30.

Design A: 90° concave, for plug pins, wire-wrap posts and straight or bent terminals. Used preferably only for cleaned PCBs because of the risk of soiling. Design C: universal serrated tip (honeycomb) for straight and bent hook-up wires, wire-wrap posts and connector terminals. Design D: round head, for contacting PCB traces and contact surfaces without leaving marks. Also used for socket contacts in connectors. Design F: flat head, suitable especially for convex and clean connecting parts to prevent surface damage.

Test probes with probe tip, type 3014/2G.

With rapid-change system; Grid: 4.0 mm. Maximum travel: 5.0 mm. Working travel: 4.0 mm. Switching travel: 1.7 mm. Spring force at working stroke (±20 %): 1.5 N. Spring prestress: 0.5 N. Spring force at switching stroke: 0.9 N. Current load capacity: receptacle-plunger/pin-plunger 3.0/1.0 A. Contact resistance receptacle-plunger/pin-plunger: 20/40 mohm. Barrel: gold-plated brass. Spring: gold-plated spring steel.

Technical attributes (type, tip shape, tip diameter, plunger material): 3014/2G-F-1,5 N-Au-3,0C, F, D 3.0 mm, gold-plated CuBe.

Technical specifications
Filter Property Value
Head shape flathead
Rated current 3 A
Stroke 5 mm
Grid 4 mm
Length 24.5 mm
diameter 2.46 mm
Material brass
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
