3010/2-F1-2.3N-HTK-3.0 | PTR

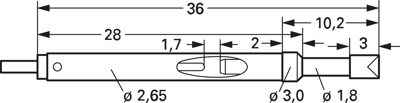

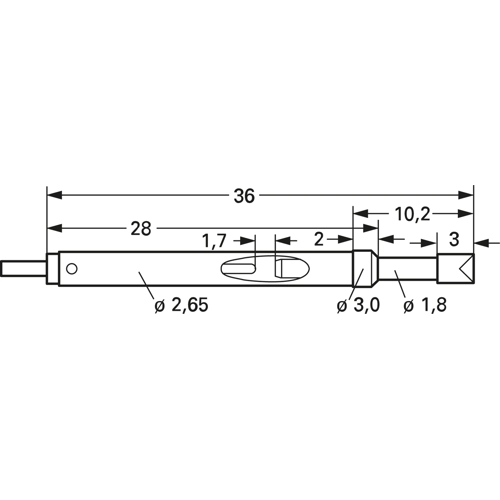

Switch spring contact with probe, round head, Ø 2.65 mm, travel 5 mm, pitch 4 mm, L 36 mm, 3010/2-F1-2.3N-HTK-3.0
Precision switching spring contacts, type PTR 30.
Design A: 90° concave, for plug pins, wire-wrap posts and straight or bent terminals. Used preferably only for cleaned PCBs because of the risk of soiling. Design C: universal serrated tip (honeycomb) for straight and bent hook-up wires, wire-wrap posts and connector terminals. Design D: round head, for contacting PCB traces and contact surfaces without leaving marks. Also used for socket contacts in connectors. Design F: flat head, suitable especially for convex and clean connecting parts to prevent surface damage.
Test probes with probe tip series 3010/2.
Grid: 4.0 mm. Maximum travel: 5.0 mm. Working stroke: 4.0 mm. Switching stroke: 1.7 mm. Spring force at working stroke (±20 %): 2.3 N. Spring prestress: 0.3 N/m. Spring force at switching stroke: 0.75 N. Current load capacity: receptacle-plunger/pin-plunger 5.0/1.0 A. Contact resistance: Receptacle plunger: 15 mohm, pin plunger 50 mohm. Barrel: gold-plated brass. Spring: gold-plated spring steel.
Technical attributes (type, tip shape, tip diameter, plunger material): 3010/2-F1-2,3 N-Au-3,0/1,0x4,0, F1, D 3.0 mm, gold-plated steel.
| Filter | Property | Value |
|---|---|---|
| Head shape | round head | |
| Rated current | 5 A | |
| Stroke | 5 mm | |
| Grid | 4 mm | |
| Length | 36 mm | |
| diameter | 2.65 mm | |
| Material | brass |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
