1034/E-Q-1.5N-AU-1.5 | PTR

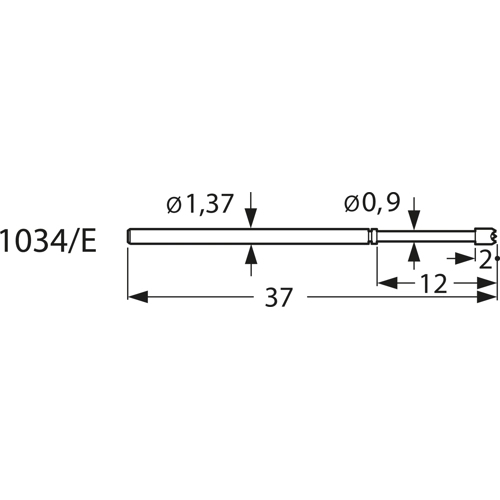

ICT spring contact with probe, Quadruple-crown, Ø 1.37 mm, travel  10 mm, pitch 2.54 mm, L 37 mm, 1034/E-Q-1.5N-AU-1.5

Order No.: 12H2172
EAN: 4099889468908
MPN:
1034/E-Q-1.5N-AU-1.5
610344373
Series: 1034/E
1034/E-Q-1.5N-AU-1.5 PTR Contact Probes
Image may differ
Unit Price (€ / pc.)
5.0932 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
10 pcs.
4.5220 €
100 pcs.
3.9032 €
250 pcs.
3.6176 €
1000 pcs.
3.3320 €
*incl. VAT plus shipping costs
Subject to prior sale

ICT spring loaded contacts, type PTR 10..

Test probes with tip series 1034/E.

Design Q: 4-point crown, self-cleaning, for contacting on heavily soiled PCBs. The special cut of the tip discharges dirt to the outside

Grid. 2.54 mm; Maximum travel: 10 mm. Working travel: 8.0 mm. Spring force at working travel (±20 %): 1.5 N. Spring prestress: 0.4 N. Current load: 5.0 to 8.0 A. Contact resistance: typically 30 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring

Table index: type, tip shape, tip diameter, plunger material.

1034/E-Q-1,5 N-Au-1,5, Q, D 1.5 mm, steel

Technical specifications
Head shape Quadruple-crown
Rated current 8 A
Stroke 10 mm
Grid 2.54 mm
Length 37 mm
diameter 1.37 mm
Material bronze
Logistics
Country of origin TN
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
