1034/E-H-1.5N-AU-2.5 | PTR
ICT spring contact with probe, tip, Ø 2.5 mm, travel 10 mm, pitch 2.54 mm, L 37 mm, 1034/E-H-1.5N-AU-2.5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
174.34 € *
Price list
Quantity
Price per unit*
50 pcs.
3.4867 €
100 pcs.
3.2011 €
500 pcs.
2.8084 €
*incl. VAT plus shipping costs
Subject to prior sale
ICT spring loaded contacts, type PTR 10..

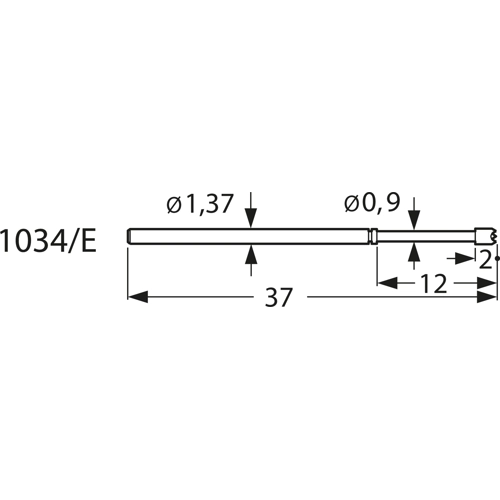

Test probes with tip series 1034/E.
Design H: pyramid, contact to plated through-holes without problems, also suitable for use on objects with flux residue.
Grid. 2.54 mm; Maximum travel: 10 mm. Working travel: 8.0 mm. Spring force at working travel (±20 %): 1.5 N. Spring prestress: 0.4 N. Current load: 5.0 to 8.0 A. Contact resistance: typically 30 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel
Type: 1034/E-H-1,5 N-Au-2,5, H, D 2.5 mm, steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | tip | |
| Rated current | 8 A | |
| Stroke | 10 mm | |
| Grid | 2.54 mm | |
| Length | 37 mm | |
| diameter | 2.5 mm | |
| Material | bronze |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
