1034/E-B-1.5N-AU-0.9 | PTR

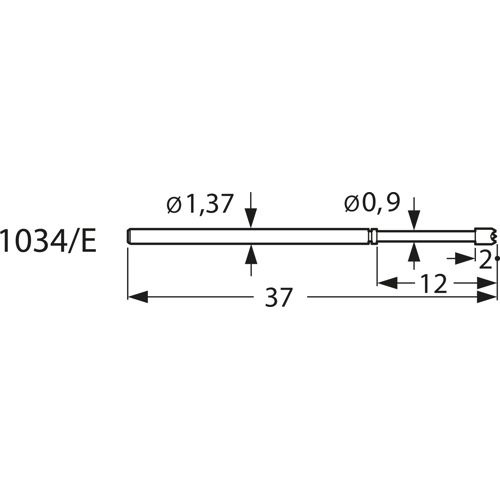

ICT spring contact with probe, tip, Ø 1.37 mm, travel  10 mm, pitch 2.54 mm, L 37 mm, 1034/E-B-1.5N-AU-0.9

Order No.: 12H2152
EAN: 4099889468861
MPN:
1034/E-B-1.5N-AU-0.9
610344033
Series: 1034/E
1034/E-B-1.5N-AU-0.9 PTR Contact Probes
Image may differ
Unit Price (€ / pc.)
5.0099 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.4625 €
100 pcs.
3.8675 €
250 pcs.
3.5700 €
1000 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale

ICT spring loaded contacts, type PTR 10..

Design B: pointed tip 30°, for PCB traces, through-plating, solder joints, and test pads.

Test probes with tip series 1034/E.

Grid. 2.54 mm; Maximum travel: 10 mm. Working travel: 8.0 mm. Spring force at working travel (±20 %): 1.5 N. Spring prestress: 0.4 N. Current load: 5.0 to 8.0 A. Contact resistance: typically 30 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel

Tabellenangaben: Typ, Kopfform, Kopfdurchmesser, Kolbenmaterial.

1034/E-B-1,5 N-Au-0,9, B, D 0.9 mm, steel

Technical specifications
Head shape tip
Rated current 8 A
Stroke 10 mm
Grid 2.54 mm
Length 37 mm
diameter 1.37 mm
Material bronze
Logistics
Country of origin TN
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
