1025/E-B-2.25N-AU-0.9 | PTR

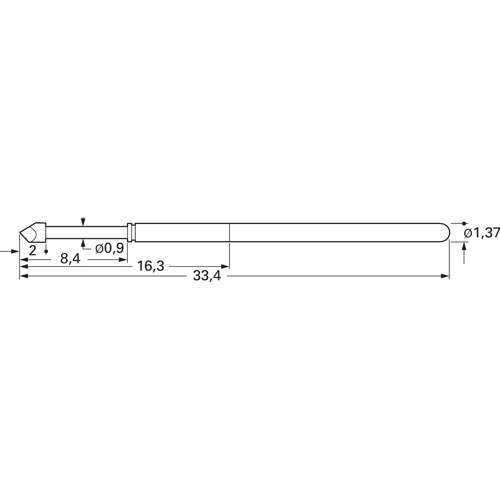

ICT spring contact with probe, tip, Ø 1.37 mm, travel 6.4 mm, pitch 2.54 mm, L 33.4 mm, 1025/E-B-2.25N-AU-0.9
Unit Price (€ / pc.)
3.7247 € *
Available: 47 pcs.
Total Price:
3.72 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7247 €
10 pcs.
3.2963 €
100 pcs.
2.8679 €
250 pcs.
2.6418 €
1000 pcs.
2.4276 €
*incl. VAT plus shipping costs
Subject to prior sale
ICT spring loaded contacts, type PTR 10.
Design B: pointed tip 30°, for PCB traces, through-plating, solder joints, and test pads.
Test probes with probe tip series 1025.
Grid: 2.54 mm. Maximum travel: 6.4 mm. Working travel: 4.3 mm. Current load: 5.0 to 8.0 A. Contact resistance: max. 20 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel.
ICT spring force contacts, spring force at working travel 2.25 N, type 1025/E.
Spring prestress: 0.4 N.
Table index: type, tip shape, tip diameter, plunger material.
1025/E-B-2,25 N-Au-0,9, B, D 0.9 mm, steel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | tip | |
| Rated current | 8 A | |
| Stroke | 6.4 mm | |
| Grid | 2.54 mm | |
| Length | 33.4 mm | |
| diameter | 1.37 mm | |
| Material | bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
