1005-B-0.8N-AU-0.35 C | PTR

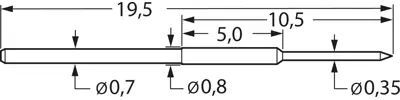

Small pushbutton spring contact, tip, Ø 0.7 mm, travel 3.8 mm, pitch 1 mm, L 19.5 mm, 1005-B-0.8N-AU-0.35 C
Unit Price (€ / pc.)
13.2923 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.29 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2923 €
10 pcs.
11.7810 €
100 pcs.
10.2578 €
250 pcs.
9.4724 €
1000 pcs.
8.6989 €
*incl. VAT plus shipping costs
Subject to prior sale
Spring-loaded test probes for small centers, type PTR Serie 1005.
Grid 1.02 mm; Maximum travel: 3.8 mm. Working travel: 3.0 mm. Spring force at working travel (±20 %): 0.8 N. Spring prestress: 0.2 N. Maximum Current load: 3.0 A. Typical contact resistance: 20 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel. Plunger: CuBe, gold-plated. Probe tip. 30°. For PCB traces, vias, solder joints and test pads.

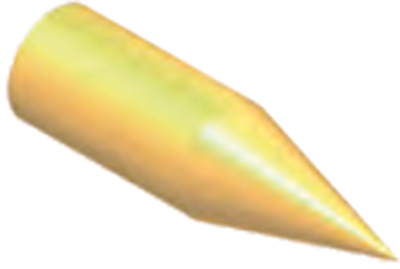

Type: 1005-B-0,8 N-Au-0,35C, probe with plunger tip D 0.35 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | tip | |
| Rated current | 3 A | |
| Stroke | 3.8 mm | |
| Grid | 1 mm | |
| Length | 19.5 mm | |
| diameter | 0.7 mm | |
| Material | bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
