23347 | Proxxon
Torque screwdriver, 1-5 Nm, square, 1/4 inch, L 165 mm, 23347
As a private customer, you can buy this item as soon as we have it back in stock.

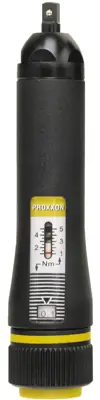

Torque screwdriver, 23347, Proxxon
Automatic quick-release when tightening screws: Clearly audible and palpable click signal when the selected torque is reached. Pre-setting of the torque by turning the knurled ring at the end of the handle, fixing it by sliding it into position. Clearly legible scale display. With 1/4" square drive (6.3 mm) for holding sockets and self-locking adapter with spring sleeve for holding 1/4" (6.3 mm) standard bits in a form fitting manner. Accuracy +/- 6%. Total length 165 mm.
Features
- Self-locking adapter with spring sleeve for 1/4" standard bits is included
- Additional micro scale for fine adjustment: 1 rotation = 1.0Nm, scale ring with 0.10Nm graduation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Peak type | square | |
| Size | 1/4 inch | |
| Version | torque screwdriver | |
| Accuracy | ±6 % | |
| Length | 165 mm | |
| Torque range | 1-5 Nm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82041100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
