27050 | Proxxon

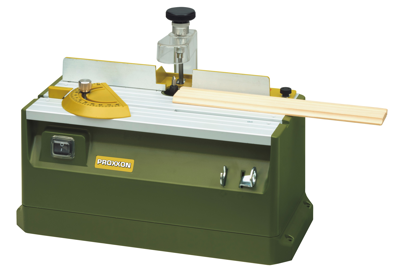

Micro-shaper MP 400
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
230.6815 € *
Standard delivery time from the manufacturer is: On Request
MICRO shaper, 27050, Proxxon
This product is used for crafting picture frames and for separating. Also enables exact manufacturing of edges and longitudinal cuts (for model building, e.g. for doors, flaps and housing parts). Powerful dust-protected motor with toothed belt drive. Double ball-bearing spindle. Milling cutter height adjustment by hand wheel. Stable aluminium table with longitudinal and angle stop as well as cutter guard. Adapter for vacuum cleaner fits standard household vacuum cleaners. Height adjustment with a scale ring adjustable to 0 (1 division = 1, 1 sub-division = 0.05 mm), milling table 300 x 150 mm, weight approx. 2.0 kg.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | MICRO profiling unit | |
| Version | for precision work on edges and longitudinal cuts in wood, fibreboard and suitable plastics | |
| Rated voltage | 230 V | |
| Power | 100 W | |
| speed | 25000 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 84596990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
