71430-250/0802 | PREH

Plug, 5 pole, solder cup, bayonet locking, straight, 71430-250/0802

Order No.: 70F710
EAN: 4099889739756
MPN:
71430-250/0802
Series: 71430

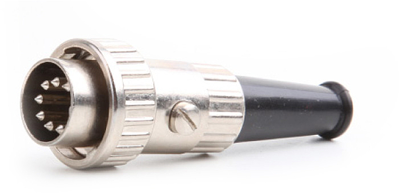

71430-250/0802 PREH Other Circular Connectors Image 1

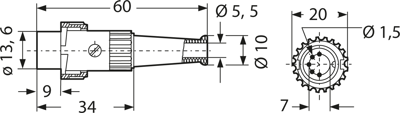

71430-250/0802 PREH Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.7005 € *
Available: 306 pcs.
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7005 €
10 pcs.
4.1293 €
100 pcs.
3.6414 €
250 pcs.
3.4867 €
1000 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN audio plugs with bayonet lock, type PREH 71.

Metal version, with black cable bushing; Operating voltage: 34 V. Continuous current: 3.0 A. Useful life: 500 insertion/removal cycles.

Technical attributes (type, number of poles, version): 71430-250, 5-pole, version C

Technical specifications
Filter Property Value
Version DIN plug
Cable diameter 5.5 mm
Pin number 5 pole
Shell Material metal
Additional parts equipped
Contact connection solder cup
Type of locking bayonet locking
contact surface tin-plated
Orientation straight
Assembly cable assembly
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
