71430-080/0800 | PREH

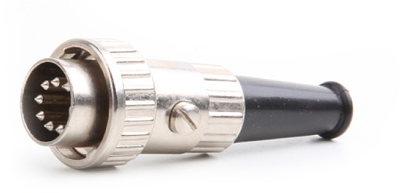

Plug, 8 pole, solder cup, bayonet locking, straight, 71430-080/0800
Discontinued
Unit Price (€ / pc.)
8.5323 € *
Available: 76 pcs.
Total Price:
8.53 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5323 €
10 pcs.
7.5208 €
100 pcs.
6.5926 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN audio plugs with bayonet lock, type PREH 71.
Metal version, with black cable bushing; Operating voltage: 34 V. Continuous current: 3.0 A. Useful life: 500 insertion/removal cycles.
Technical attributes (type, number of poles, version): 71430-080, 8-pole, version I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | tin-plated | |
| Shell Material | metal | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Type of locking | bayonet locking | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Version | DIN plug | |
| Cable diameter | 5.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
