71206-051/0801 | PREH

Panel socket, 5 pole, solder cup, bayonet locking, straight, 71206-051/0801

Order No.: 70F780
EAN: 4099889739879
MPN:
71206-051/0801
Series: 71206

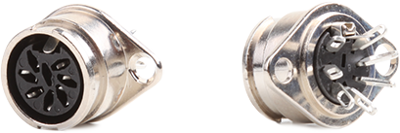

71206-051/0801 PREH Other Circular Connectors Image 1

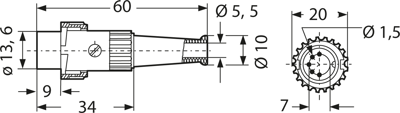

71206-051/0801 PREH Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.6414 € *
Available: 77 pcs.
Total Price:
7.28 € *
Price list
Quantity
Price per unit*
2 pcs.
3.6414 €
10 pcs.
3.2606 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN audio panel jacks for bayonet connection, type 71206.

With mounting flange.

Number of poles: 5-pole

Version: D

Operating voltage: 34 V

Continuous current: 3.0 A

Useful life: 500 insertion/removal cycles

Mounting hole pitch: 22.2 mm

Mounting hole diameter: 3.2 mm

Mounting depth: 8.0 mm

Type: 71206-051

Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material metal
Cable diameter 3.2 mm
Orientation straight
Assembly panel mounting
Additional parts equipped
Version DIN panel socket
Pin number 5 pole
Type of locking bayonet locking
contact surface tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
