4-1393030-5 | Potter & Brumfield
Solid state relay, 90-280 VAC, zero voltage switching, 48-660 VAC, 50 A, screw mounting, 4-1393030-5
Unit Price (€ / pc.)
86.4059 € *
Available in 5 Days: 161 pcs. - if ordered today

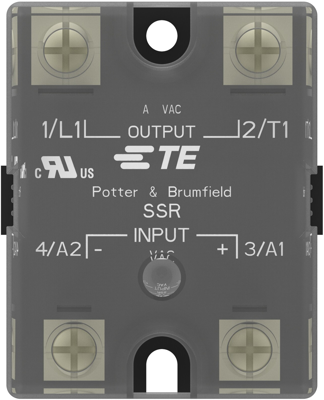

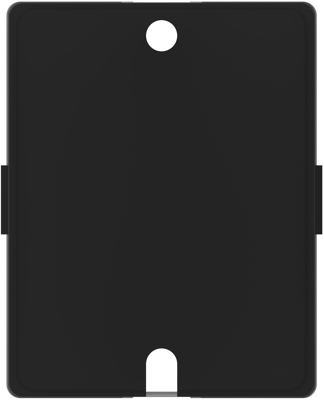

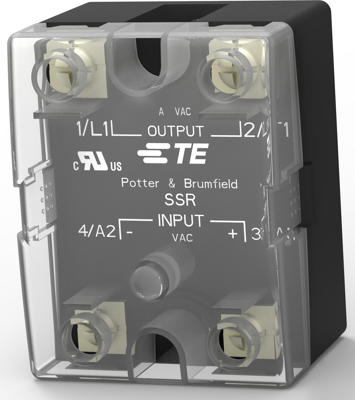

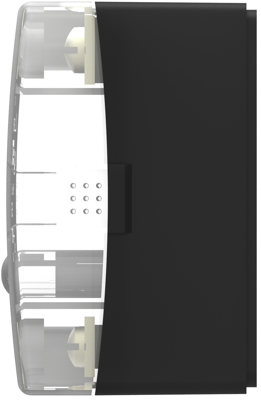

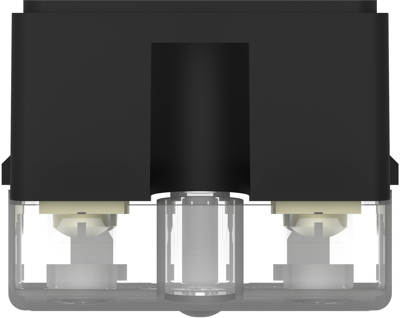

Solid state relay, 4-1393030-5, Potter & Brumfield
The 4-1393030-5 is featured in industrial applications, where silent, fast and long electrical life in switching is required. It is used in heating, power, lighting and motion applications. This product can operate with very low operating time (make/bounce) with practically no limit on number of switching cycles.
Features
- Long electrical life
- Shock and vibration resistance
- PCB terminals
- Fast switching
- Low electrical noise
Applications
- Motion control
- Heating control
- Power control
- Plastic molding machinery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | zero voltage switching | |
| Control Voltage | 90-280 VAC | |
| Assembly | screw mounting | |
| LED display | Yes | |
| Voltage | 48-660 VAC | |
| Rated current | 50 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
