5-1419102-4 | Potter & Brumfield

Relay, 1 Form C (NO/NC), 12 V (DC), 144 Ω, 20 A, 277 V (AC), monostable, 5-1419102-4

Order No.: 71P9373
EAN: 4099891595418
MPN:
5-1419102-4
Series: T9A

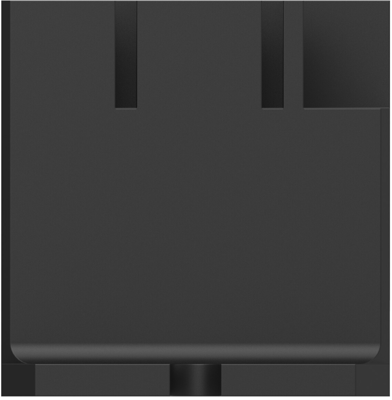

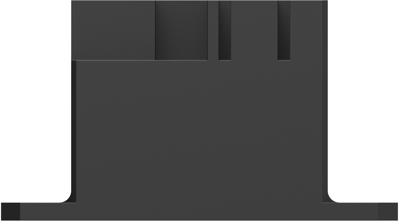

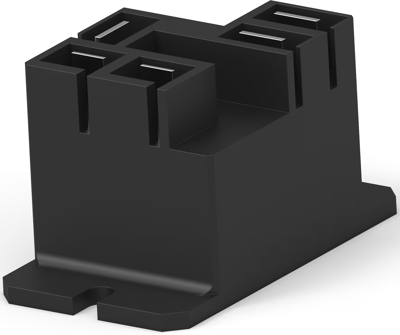

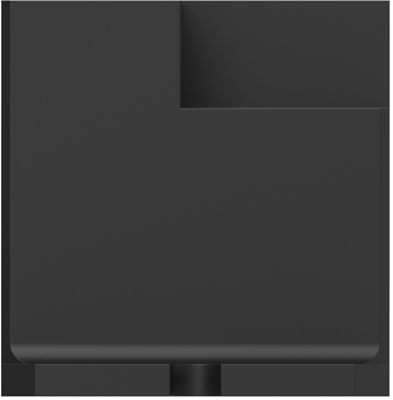

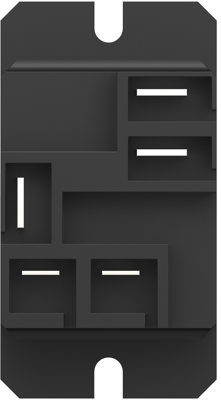

5-1419102-4 Potter & Brumfield Industrial Relays Image 1
5-1419102-4 Potter & Brumfield Industrial Relays Image 2
5-1419102-4 Potter & Brumfield Industrial Relays Image 3
5-1419102-4 Potter & Brumfield Industrial Relays Image 4
5-1419102-4 Potter & Brumfield Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
6.3427 € *
Available in 5 Days: 116 pcs. - if ordered today
Total Price:
95.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
15 pcs.
6.3427 €

Power relay, 5-1419102-4, Potter & Brumfield

Power relay, Standard, Monostable, DC, 1000 mW Coil Power Rating DC, 144 Ω Coil Resistance, UL Coil Insulation Class F.

Features

  • Dust protected plastic case
  • 30A switching in 1 form C
  • Flanged mounting
  • UL class F insulation system standard

Applications

  • Appliances
  • Industrial Control
  • HVAC
Technical specifications
Filter Property Value
switching current 20 A
Coil resistance 144 Ω
Connection plug-in connection
Contact type 1 Form C (NO/NC)
Contact material AgCdO
Coil voltage (DC) 12 V
Switching Voltage (AC) 277 V
Coil type monostable
Logistics
Property Value
Customs tariff number 85364110
Country of origin CN
Compliance
Property Value
Substance description Cadmium oxide
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
