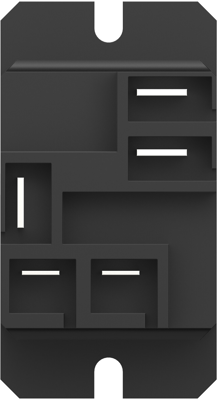

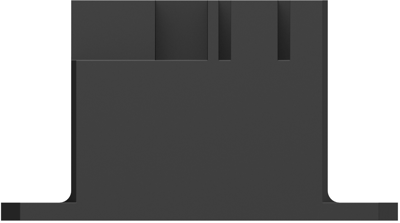

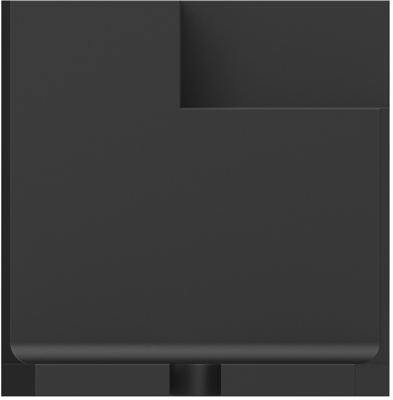

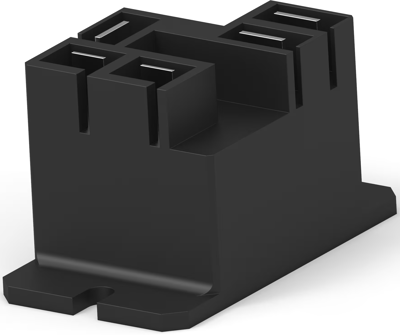

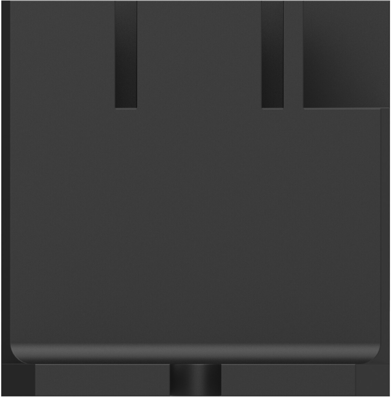

5-1419102-2 | Potter & Brumfield
Relay, 1 Form C (NO/NC), 24 V (DC), 576 Ω, 20 A, 277 V (AC), monostable, 5-1419102-2
Unit Price (€ / pc.)
6.7711 € *
Available: 0 pcs.
Available in 5 Days: 988 pcs.
Leadtime: 1 Week **
Total Price:
6.77 € *
Price list
Quantity
Price per unit*
15 pcs.
6.7711 €
75 pcs.
5.6763 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power relay, 5-1419102-2, Potter & Brumfield
Power relay, Standard, Monostable, DC, 1000 mW Coil Power Rating DC, 576 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Dust protected plastic case
- 30A switching in 1 form C
- Flanged mounting
- UL class F insulation system standard
Applications
- Appliances
- Industrial Control
- HVAC
Technical specifications
| Connection | plug-in connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 277 V | |
| switching current | 20 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 576 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium oxide |
