5-1393779-5 | Potter & Brumfield
Relay, 1 Form C (NO/NC), 5 V (DC), 125 Ω, 2 A, 60 V (DC), 125 V (AC), monostable, 5-1393779-5
Unit Price (€ / pc.)
2.5347 € *
Available in 5 Days: 811 pcs. - if ordered today
Total Price:
253.47 € *
Price list
Quantity
Price per unit*
100 pcs.
2.5347 €
200 pcs.
2.4990 €
*incl. VAT plus shipping costs
Subject to prior sale

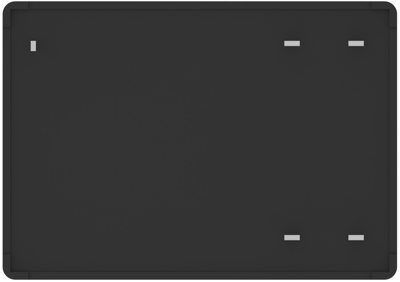

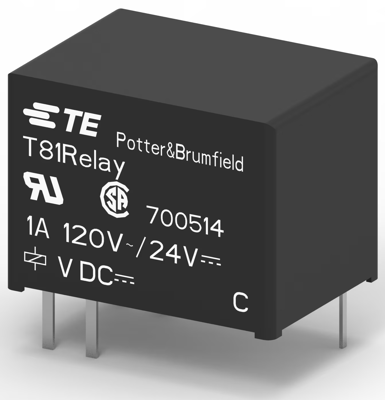

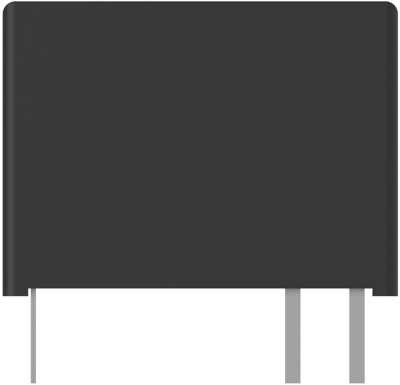

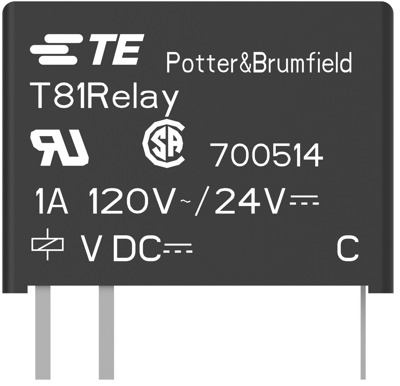

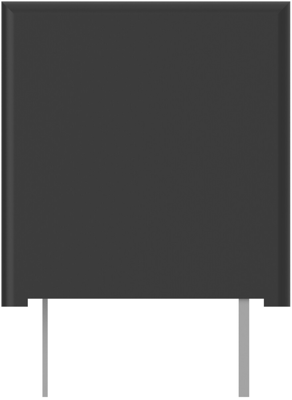

Signal PCB relay, 5-1393779-5, Potter & Brumfield
Signal relay, 24 VDC Contact Voltage, 120 VAC Contact Voltage, 200 mW Coil Power (DC), Printed circuit board/Socket.
Features
- Au clad contacts in a 1 Form C (CO) arrangement
- Sensitive DC coils
- High dielectric strength
- Wash tight case
- Quiet operation for security applications
Applications
- Audio communications circuits
- Logic and process control
- Vending machines
- Office automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 5 V | |
| Switching Voltage (DC) | 60 V | |
| switching current | 2 A | |
| Coil resistance | 125 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 125 V | |
| Coil type | monostable | |
| Connection | PCB pin | |
| Contact material | PdNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
