5-1393211-3 | Potter & Brumfield

Relay, 2 Form C (NO/NC), 12 V (DC), 86 Ω, 30 A, 600 V (AC), monostable, 5-1393211-3

Order No.: 71P9334
EAN: 4099891595135
MPN:
5-1393211-3
Series: T92

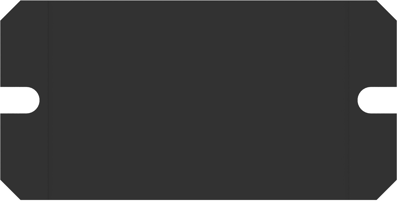

5-1393211-3 Potter & Brumfield Industrial Relays Image 1

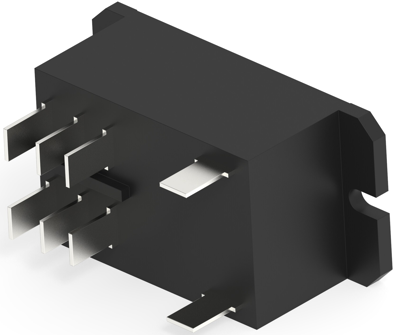

5-1393211-3 Potter & Brumfield Industrial Relays Image 2

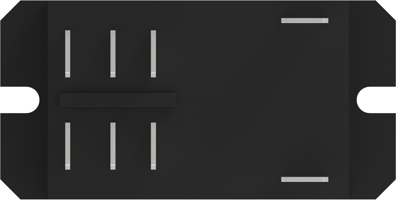

5-1393211-3 Potter & Brumfield Industrial Relays Image 3

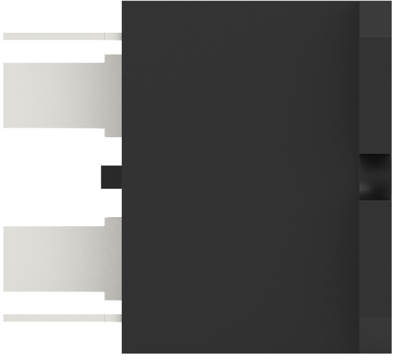

5-1393211-3 Potter & Brumfield Industrial Relays Image 4

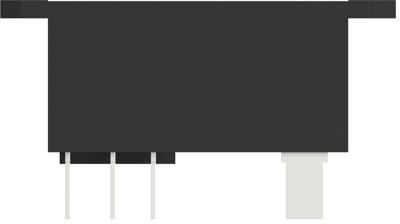

5-1393211-3 Potter & Brumfield Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
20.0753 € *
Available in 5 Days: 1,527 pcs. - if ordered today
Total Price:
160.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
8 pcs.
20.0753 €

Power relay, 5-1393211-3, TE Connectivity

Power relay, Standard, Monostable, DC, 1700 mW Coil Power Rating DC, 86 Ω Coil Resistance, UL Coil Insulation Class F.

Features

  • Designed to control compressor loads
  • Printed circuit board mount
  • Dust protected plastic case
  • Meets requirements of UL Class F construction

Applications

  • Residential / commercial appliances
  • Industrial Control
  • Charging
  • HVAC
Technical specifications
Filter Property Value
Coil voltage (DC) 12 V
Contact material AgCdO
Coil type monostable
switching current 30 A
Contact type 2 Form C (NO/NC)
Switching Voltage (AC) 600 V
Coil resistance 86 Ω
Connection faston plug
Logistics
Property Value
Country of origin CN
Customs tariff number 85364110
Compliance
Property Value
RoHS conform Yes
Substance description Cadmium oxide
Date of RoHS guidelines 3/31/15
SVHC free No
