2-1393771-0 | Potter & Brumfield
Relay, 1 Form A (N/O), 24 V (DC), 24 V (AC), 2150 Ω, 0.5 A, 100 V (DC), monostable, 2-1393771-0
Unit Price (€ / pc.)
9.1630 € *
Available in 5 Days: 3,054 pcs. - if ordered today
Total Price:
229.08 € *
Price list
Quantity
Price per unit*
25 pcs.
9.1630 €
75 pcs.
9.0083 €
*incl. VAT plus shipping costs
Subject to prior sale

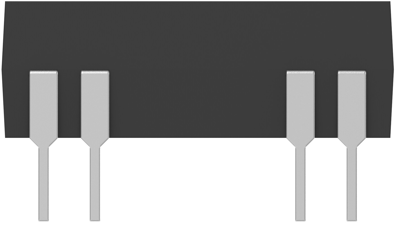

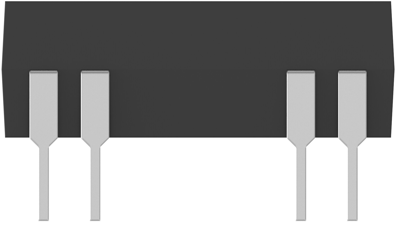

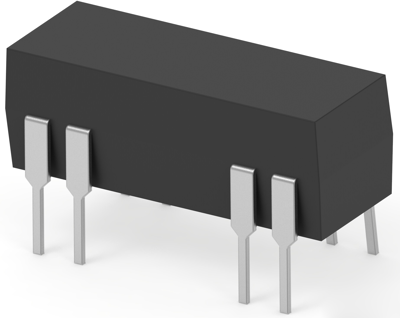

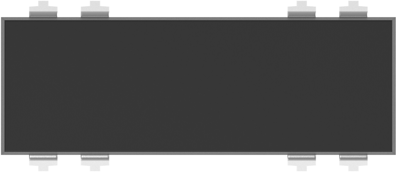

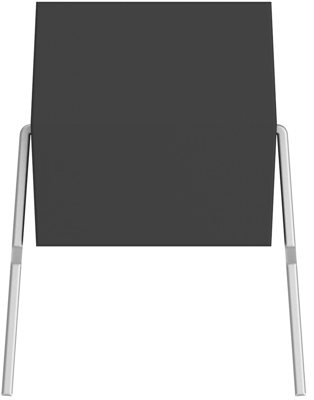

Reed relay, 2-1393771-0, Potter & Brumfield
Signal relay, 20 VDC Contact Voltage, 400 mW Coil Power (DC), Printed circuit board, PCB-THT, 24 VDC Coil Voltage.
Features
- Low cost, dry reed reliability with various contact arrangements
- Wave solderable and immersion cleanable molded epoxy package
Applications
- Telecommunication
- Measurement and control
- Automated test equipment
- Security system
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Switching Voltage (DC) | 100 V | |
| switching current | 0.5 A | |
| Coil resistance | 2150 Ω | |
| Coil voltage (AC) | 24 V | |
| Contact type | 1 Form A (N/O) | |
| Coil type | monostable | |
| Connection | PCB pin | |
| Contact material | Ru |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
