2-1393117-9 | Potter & Brumfield
Relay, 2 Form C (NO/NC), 120 V (AC), 2250 Ω, 10 A, 240 V (AC), monostable, 2-1393117-9
Unit Price (€ / pc.)
36.3783 € *
Available in 5 Days: 21 pcs. - if ordered today
Total Price:
218.27 € *
Price list
Quantity
Price per unit*
6 pcs.
36.3783 €
16 pcs.
31.3803 €
*incl. VAT plus shipping costs
Subject to prior sale

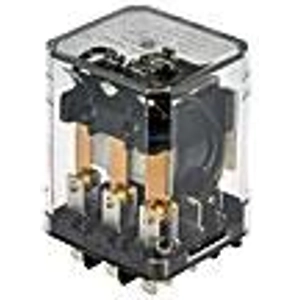

Panel plug-in relay, 2-1393117-9, Potter & Brumfield
Power relay, Industrial panel plug-In, Monostable, AC, 2.1 VA Coil Power Rating AC, 2250 Ω Coil Resistance.
Features
- Contact arrangements of 2 form C
- Bracket mount
- Enclosed relay
- Class B coil insulation
Applications
- Vending
- Commercial sewing
- Tool/die equipment
- Robotics, timers
- Power generators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 2250 Ω | |
| Coil voltage (AC) | 120 V | |
| Connection | plug-in connection | |
| Contact type | 2 Form C (NO/NC) | |
| switching current | 10 A | |
| Coil type | monostable | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 240 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium oxide |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
