1558666-7 | Potter & Brumfield

Relay, 1 Form A (N/O), 24 V (DC), 640 Ω, 30 A, 480 V (AC), monostable, 1558666-7

Order No.: 71P2385
EAN: 4099891590918
MPN:
1558666-7
Series: T9G

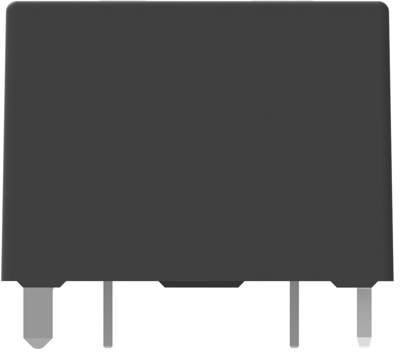

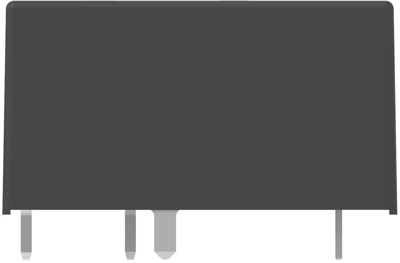

1558666-7 Potter & Brumfield Industrial Relays Image 1
1558666-7 Potter & Brumfield Industrial Relays Image 2
1558666-7 Potter & Brumfield Industrial Relays Image 3
1558666-7 Potter & Brumfield Industrial Relays Image 4
1558666-7 Potter & Brumfield Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 2,590 pcs. - if ordered today
Total Price:
174.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
90 pcs.
1.9397 €

Power relay, 1558666-7, Potter & Brumfield

The 1558666-7 is a versatile relay that can be used globally and through it's PCB and quick connect terminations, it is user-friendly and easy to install. This product helps provide operator safety through increased insulation and saves PCB space with the smallest relay in it's class while maintaining standard footprint.

Applications

  • Energy management
  • Industrial controls
  • Appliances
  • HVAC
Technical specifications
Contact type 1 Form A (N/O)
Coil type monostable
Connection PCB pin
Coil resistance 640 Ω
switching current 30 A
Coil voltage (DC) 24 V
Contact material AgSnO
Switching Voltage (AC) 480 V
Logistics
Customs tariff number 85364900
Country of origin PT
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
