1558665-9 | Potter & Brumfield

Relay, 1 Form C (NO/NC), 110 V (DC), 13444 Ω, 20 A, 480 V (AC), monostable, 1558665-9

Order No.: 71P2383
EAN: 4099891590895
MPN:
1558665-9
Series: T9G

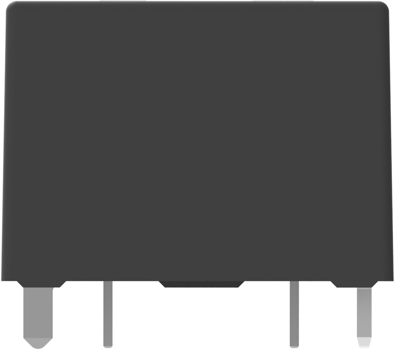

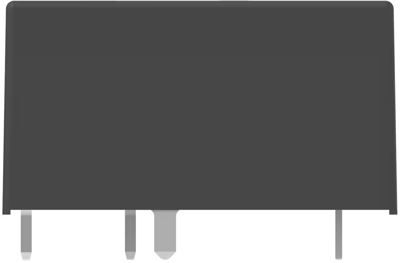

1558665-9 Potter & Brumfield Industrial Relays Image 1
1558665-9 Potter & Brumfield Industrial Relays Image 2
1558665-9 Potter & Brumfield Industrial Relays Image 3
1558665-9 Potter & Brumfield Industrial Relays Image 4
1558665-9 Potter & Brumfield Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
5.7120 € *
Available in 5 Days: 875 pcs. - if ordered today
Total Price:
228.48 € *
Price list
Quantity
Price per unit*
40 pcs.
5.7120 €
90 pcs.
5.6168 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, 1558665-9, Potter & Brumfield

The 1558665-9 is a versatile relay that can be used globally and through it's PCB and quick connect terminations, it is user-friendly and easy to install. This product helps provide operator safety through increased insulation and saves PCB space with the smallest relay in it's class while maintaining standard footprint.

Applications

  • Energy management
  • Industrial controls
  • Appliances
  • HVAC
Technical specifications
Switching Voltage (AC) 480 V
Coil type monostable
switching current 20 A
Coil voltage (DC) 110 V
Connection PCB pin
Contact type 1 Form C (NO/NC)
Contact material AgSnO
Coil resistance 13444 Ω
Logistics
Country of origin PT
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
