1393771-6 | Potter & Brumfield
Relay, 1 Form A (N/O), 12 V (DC), 1200 Ω, 0.5 A, 100 V (DC), monostable, 1393771-6
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
9.5795 € *
Available in 12 Days: 2,197 pcs. - if ordered today

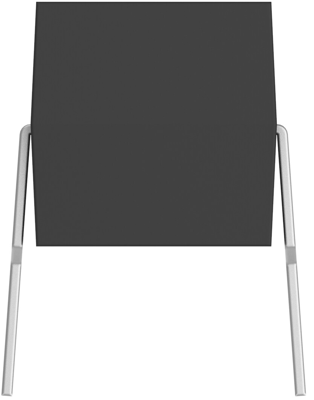

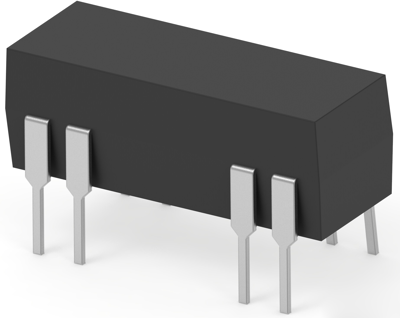

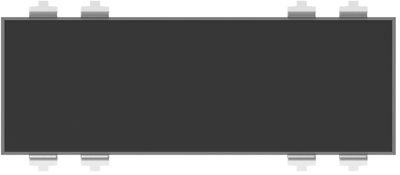

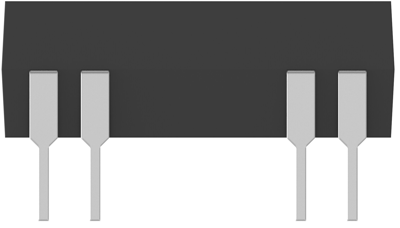

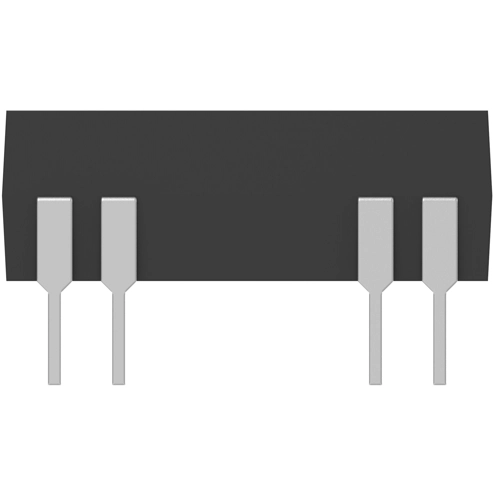

Reed relay, 1393771-6, Potter & Brumfield
Signal relay, 20 VDC Contact Voltage, 120 mW Coil Power (DC), Printed circuit board, PCB-THT, 12 VDC Coil Voltage.
Features
- Low cost, dry reed reliability with various contact arrangements
- Wave solderable and immersion cleanable molded epoxy package
Applications
- Telecommunication
- Measurement and control
- Automated test equipment
- Security system
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 1200 Ω | |
| Switching Voltage (DC) | 100 V | |
| Connection | PCB pin | |
| Coil type | monostable | |
| Contact material | Ru |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
