1393128-6 | Potter & Brumfield
Relay, 1 Form C (NO/NC), 24 V (AC), 12 Ω, 25 A, 50 V (DC), 277 V (AC), monostable, 1393128-6
Order No.: 71P1968
EAN: 4099891589875
MPN:
1393128-6
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
69.3056 € *
Available in 12 Days: 5 pcs. - if ordered today

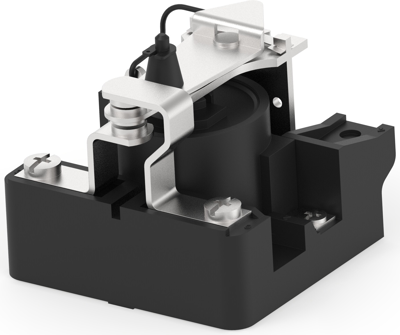

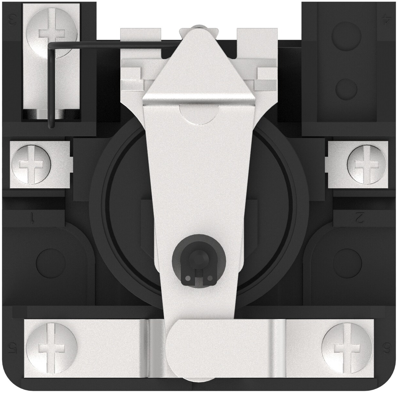

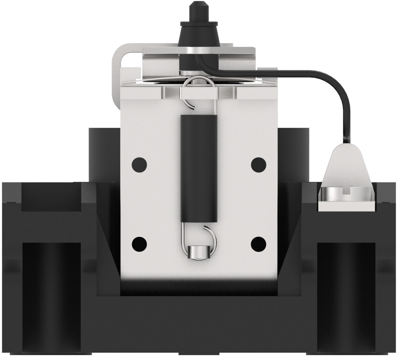

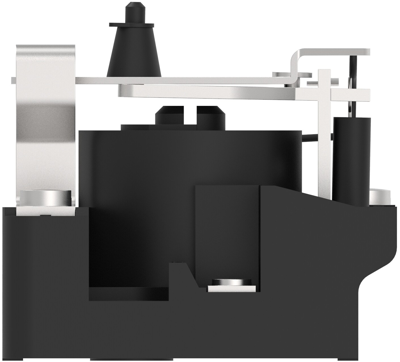

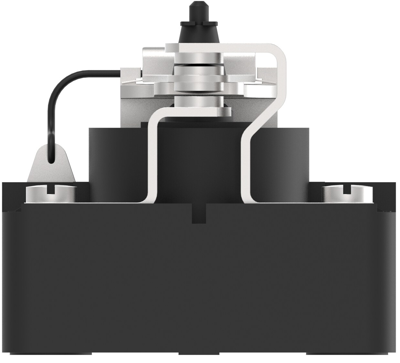

Power relay, 1393128-6, Potter & Brumfield
Power relay, Standard, Monostable, AC, 9.8 VA Coil Power Rating AC, 12 Ω Coil Resistance, UL Coil Insulation Class B, 24 VAC Coil Voltage.
Applications
- Industrial Control
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 25 A | |
| Coil voltage (AC) | 24 V | |
| Coil resistance | 12 Ω | |
| Switching Voltage (DC) | 50 V | |
| Switching Voltage (AC) | 277 V | |
| Connection | screw connection | |
| Coil type | monostable | |
| Contact material | Ag |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
