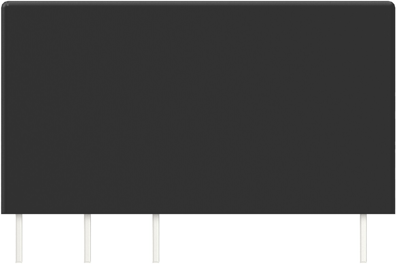

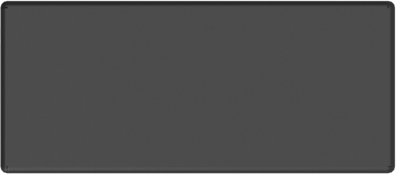

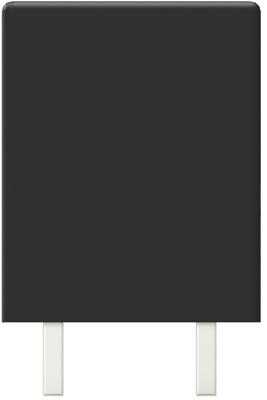

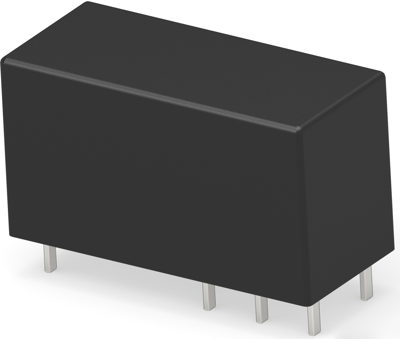

1-1393242-0 | Potter & Brumfield
Relay, 1 Form C (NO/NC), 9 V (DC), 200 Ω, 16 A, 400 V (AC), monostable, 1-1393242-0
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Available in 5 Days: 2,608 pcs.
Leadtime: 15 Weeks **
Total Price:
227.05 € *
Price list
Quantity
Price per unit*
60 pcs.
3.7842 €
160 pcs.
3.7247 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power PCB relay, 1-1393242-0, Potter & Brumfield
Power relay, Standard, Monostable, DC, 400 mW Coil Power Rating DC, 200 Ω Coil Resistance.
Features
- 5kV/10mm coil-contact, reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface module
Technical specifications
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| switching current | 16 A | |
| Coil voltage (DC) | 9 V | |
| Connection | PCB pin | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi 90/10 | |
| Coil resistance | 200 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
