4-1393132-0 | Potter & Brumfield

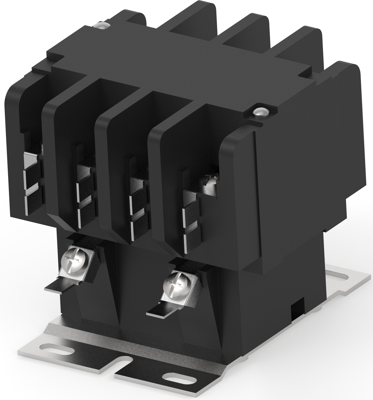

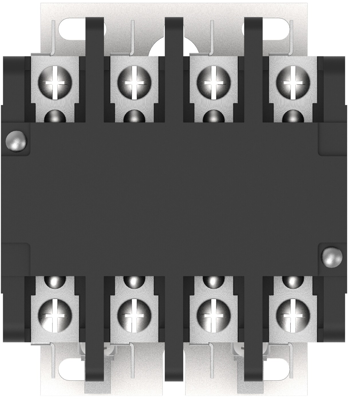

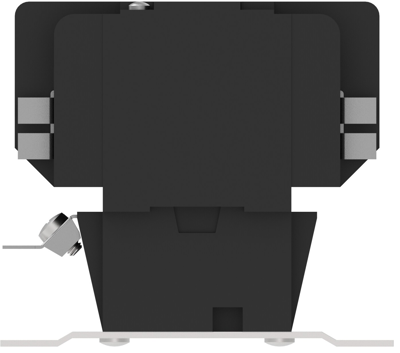

Contactor, 4 pole, 30 A, 208-240 VAC, 4 form Y, coil 240 VAC, screw connection, 4-1393132-0
Unit Price (€ / pc.)
345.3618 € *
Available in 5 Days: 8 pcs. - if ordered today
Total Price:
345.36 € *
Price list
Quantity
Price per unit*
1 pcs.
345.3618 €
2 pcs.
338.9715 €
*incl. VAT plus shipping costs
Subject to prior sale
Definite purpose contactor, 4-1393132-0, Potter & Brumfield
Definite purpose contactor, 4, 208-240 VAC Coil Voltage, 30 A, Panel, 4 Form Y, 4PST-NC-DB, 10-32 Screw/Quick Connect.
Features
- For control of motors, power supplies, heating elements and lighting
- No aux switch
- Standard mounting
- Screw terminals and dual
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 30 A | |
| Assembly | panel mounting | |
| Latching switching function | 4 form Y | |
| Connection | screw connection | |
| Control Voltage | 240 VAC | |
| Pin number | 4 pole | |
| Version | contactor | |
| Rated Voltage | 208-240 VAC | |
| rated voltage (AC) | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium oxide |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
