1-1393128-7 | Potter & Brumfield

Name: Contactor, 2 pole, 25 A, 24 VDC, 1 Form C (NO/NC), coil 24 VDC, screw connection, 1-1393128-7
Brand: Potter & Brumfield
SKU: 71P0378
Availability: InStock

Contactor, 2 pole, 25 A, 24 VDC, 1 Form C (NO/NC), coil 24 VDC, screw connection, 1-1393128-7

Order No.: 71P0378

EAN: 4099891657321

MPN:

1-1393128-7

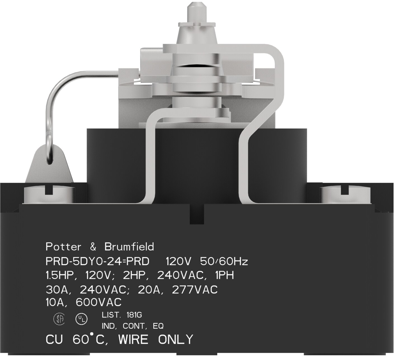

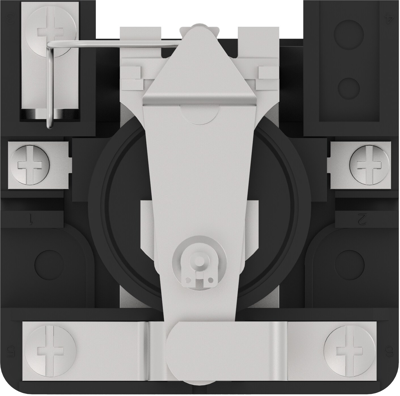

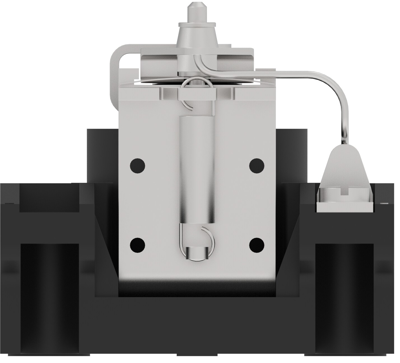

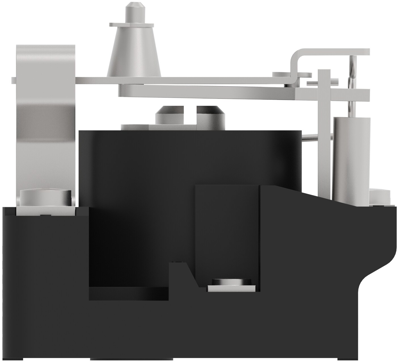

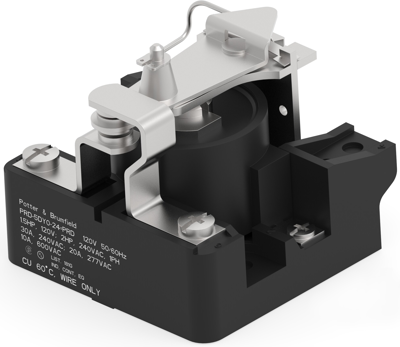

1-1393128-7 Potter & Brumfield Contactors Image 3

1-1393128-7 Potter & Brumfield Contactors Image 4

1-1393128-7 Potter & Brumfield Contactors Image 5

Image may differ

Key Specification:

Version contactor

Latching switching function 1 Form C (NO/NC)

Pin number 2 pole

Rated current 25 A

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

78.3853 € *

Available in 5 Days: 115 pcs. - if ordered today

Total Price:

235.16 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, 1-1393128-7, Potter & Brumfield

Definite purpose contactor, 2, 24 VDC Coil voltage, 25 A, Panel, Screw terminal, 288 Ω Coil resistance, 600 VAC Switching voltage.

Features

Magnetic blowouts
Contact arrangement

Applications

Industrial Control
Lighting

Technical specifications

Filter	Property	Value
	Connection	screw connection
	Version	contactor
	Pin number	2 pole
	Control Voltage	24 VDC
	rated voltage (AC)	600 V
	Assembly	panel mounting
	Latching switching function	1 Form C (NO/NC)
	Rated current	25 A
	Rated Voltage	24 VDC
