PVLEAD3 | Pomona
Measuring lead with (2 x MC4 plug, straight) to (2 x MC4 socket, straight), black/red, CAT III, CAT IV, PVLEAD3
Unit Price (€ / pc.)
113.9901 € *
Available: 1 pcs.
Solar clamp lead set, PVLEAD3, Pomona
The PVLEAD3 solar clamp lead set creates a connection between a solar panel and inverter for troubleshooting and maintenance of PV systems.
Features

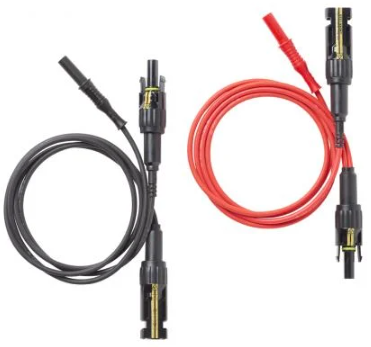

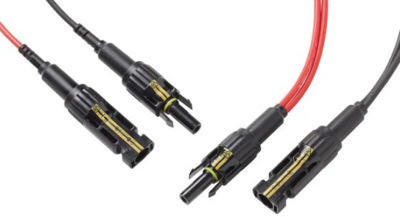

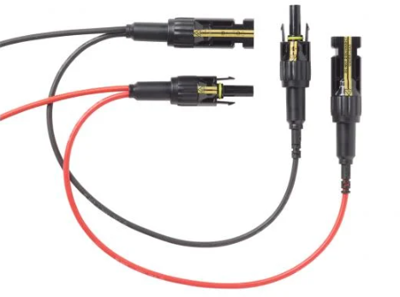

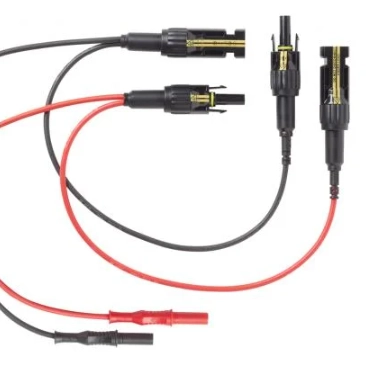

- The black test lead is a MC4 (male) breakout to 12-inch MC4 (female) and 36-inch 4 mm sheathed banana plug test lead
- The red test lead is a MC4 (female) breakout to 12-inch MC4 (male) and 36-inch 4 mm sheathed banana plug test lead
- Designed for use with solar clamp meters that accept 4 mm banana plugs
- Ensures safe DC power measurements on photovoltaic (PV) modules and systems
- Nickel plated contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | nickel-plated | |
| Connection (2) | 2 x MC4 socket, straight | |
| Colour | black/red | |
| Stackable | No | |
| Rated category | CAT III, CAT IV | |
| Rated current | 20 A | |
| Connection (1) | 2 x MC4 plug, straight | |
| Touch safe | Yes | |
| Rated Voltage | 1000 V/600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
