570570 | Pilz

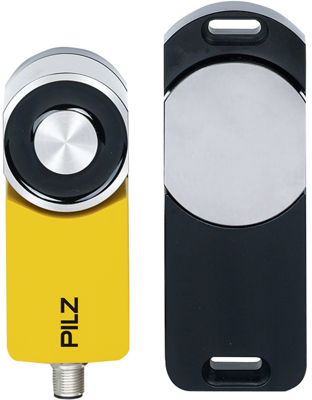

Safe safety gate system, with electromagnetic guard locking, 4.8 W, 24 V (DC), 570570

Order No.: 81P9138
EAN: 4046548078848
MPN:
570570
Series: PSEN
570570 Pilz Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
633.9957 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
634.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
633.9957 €

Magnetic safety gate, 570570, PILZ

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, add-on function: switch safe semiconductor outputs when gate is closed (independently from guard locking), 8-pin M12 connector,4 LEDs, IP67, package contents = sensor with standard actuator.

Technical specifications
Filter Property Value
Degree of protection (IP) IP67
Breaking capacity 4.8 W
Length 122 mm
Product type safe safety gate system
Version with electromagnetic guard locking
Switching Voltage (DC) 24 V
Connection M12-plug
Logistics
Property Value
Country of origin CH
Customs tariff number 85365019
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
