541060 | Pilz
RFID switch, built-in mounting M8, 1 W, 24 V (DC), 541060
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
149.226 € *
Standard delivery time from the manufacturer is: 2 Weeks

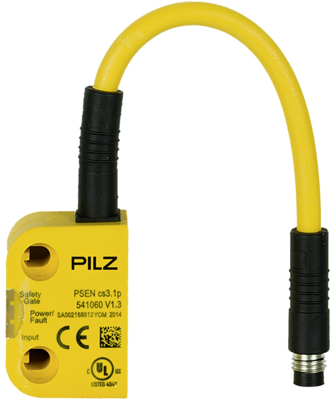

RFiD safety switch, 541060, PILZ
RFiD safety switch, 2 safe SC outputs, 8-pin M8 male connector, one actuation direction, IP67, typ. operating distance 11 mm, Sao = 8 mm,Sar = 20 mm, PU = 1 piece coded switch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | RFID switch | |
| Breaking capacity | 1 W | |
| Switching Voltage (DC) | 24 V | |
| Detecting distance | 11 mm | |
| Assembly | built-in mounting M8 | |
| Connection | M8-plug | |
| Degree of protection (IP) | IP67/IP6K9K | |
| Length | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
