890060 | Pilz
Monitoring relays, active power monitoring, 1 Form C (NO/NC), 230 V (AC), 890060
Order No.: 81P9109
EAN: 4046548007046
MPN:
890060
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
432.3746 € *
Standard delivery time from the manufacturer is: 2 Weeks

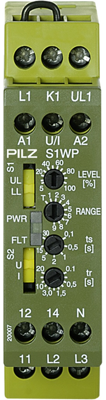

True power monitoring, 890060, PILZ
True power monitoring suitable for 1- and 3-phase supplies for frequency-controlled motors, 9 measuring ranges 0 - 1000 Hz, measuringvoltage 0 - 415 V AC/DC, 1 changeover contact, 1 analogue output 0 - 10 V DC or 4 -20 mA, width = 22.5 mm, UB = 110 - 230 V AC/DC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | active power monitoring | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 230 V | |
| Connection | screw connection | |
| Contact material | AgCdO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
