774542 | Pilz
Monitoring relays, safety switching device, 5 Form A (N/O), 8 A, 24 V (DC), 774542
Unit Price (€ / pc.)
459.9469 € *
Standard delivery time from the manufacturer is: 2 Weeks

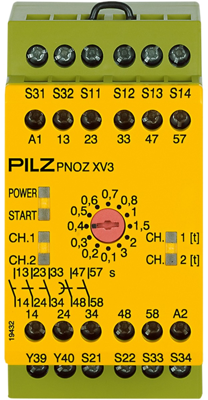

Safety relay, 774542, PILZ
Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 2 N/Ot-d, UB = 24 V DC, width: 45 mm, screw terminals integrated, E-STOP monitoring, safety gates, with 2 delay-on de-energisation contacts, delay time can be set in 12 levels from 0.1 - 3 s.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 24 V | |
| Contact type | 5 Form A (N/O) | |
| Connection | screw connection | |
| switching current | 8 A | |
| Contact material | AgSnO2 | |
| Version | safety switching device |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
