774319 | Pilz
Monitoring relays, safety switching device, 3 Form A (N/O) + 1 Form B (N/C), 8 A, 24 V (DC), 240 V (AC), 774319
Unit Price (€ / pc.)
316.1354 € *
Standard delivery time from the manufacturer is: 2 Weeks

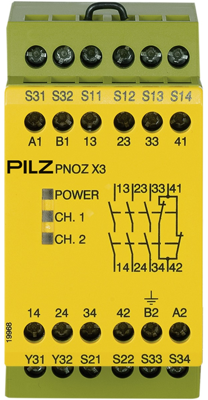

Safety relay, 774319, PILZ
Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C,1 SC, automatic/monitored start, UB = 240 V AC/24 V DC, width: 45 mm, screw terminals integrated, monitoring of E-STOP, feedback loop, safety gates.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 24 V | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Connection | screw connection | |
| switching current | 8 A | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 240 V | |
| Version | safety switching device |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
