750154 | Pilz
Monitoring relays, safety switching device, 3 Form A (N/O) + 1 Form B (N/C), 4 A, 240 V (DC), 240 V (AC), 750154
Unit Price (€ / pc.)
344.3979 € *
Standard delivery time from the manufacturer is: 2 Weeks

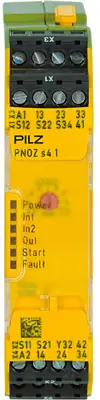

PNOZsigma safety relay, 750154, PILZ
PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O,1 N/C, 1 SC, UB = 48 - 240 V AC/DC, width: 22.5 mm, plug-in screw terminals, monitoring of E-STOP, safety gates.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | safety switching device | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 4 A | |
| Switching Voltage (DC) | 240 V | |
| Switching Voltage (AC) | 240 V | |
| Connection | screw connection | |
| Contact material | AgCuNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
