750104 | Pilz
Monitoring relays, safety switching device, 3 Form A (N/O) + 1 Form B (N/C), 6 A, 24 V (DC), 750104
Unit Price (€ / pc.)
305.8419 € *
Standard delivery time from the manufacturer is: 2 Weeks

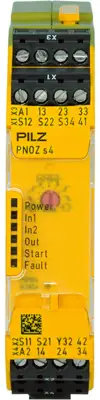

PNOZsigma safety relay, 750104, PILZ
PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic start, outputs: 3 N/O, 1 N/C, 1 SC, UB 24 V DC, width: 22.5 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light guard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgCuNi | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Version | safety switching device | |
| Connection | screw connection | |
| switching current | 6 A | |
| Switching Voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
