PTC 10 LV 500R | Piher

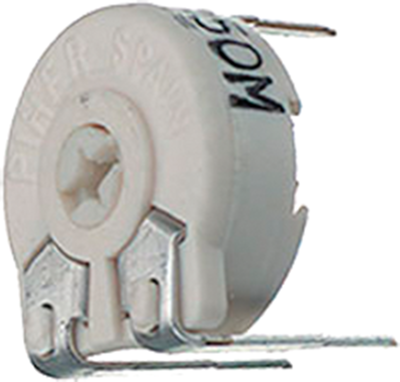

Cermet trimmer potentiometer, 500 Ω, 0.33 W, THT, on top, PTC 10 LV 500R
Unit Price (€ / pc.)
0.6664 € *
Available: 0 pcs.
Leadtime: On Request **
Trimmer potentiometer, PTC 10 LV 500R,Piher
The PTC-10 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.
Features
- Excellent performance
- Cermet resistive element
- Up to 16 mechanical detents for tactile feedback
- Up to 100.000 life cycles
- Wiper positioned at initial, 50 % or fully clockwise
Applications
- Appliance program selection
- Thermostat adjustment
- Timer and control relays
- Consumer electronics
- Power tool controls
- Test and measurement equipment
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | THT | |
| Width | 5 mm | |
| Mechanic rotary range | 235 ° | |
| Power | 0.33 W | |
| Length | 10 mm | |
| Contact distance | RM 5/10 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder pin | |
| Tolerance | ±20 % | |
| max. operating temperature | 90 °C | |
| Rotary range, electrical | 220 ° | |
| ohmic resistance | 500 Ω | |
| Seeting | on top |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85334010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
