PTC 10 LV 100R | Piher

Cermet trimmer potentiometer, 100 Ω, 0.33 W, THT, on top, PTC 10 LV 100R

Order No.: 66E400
EAN: 4099879889324
MPN:
PTC 10 LV 100R
PTC10LV10101A2020
Series: PTC10

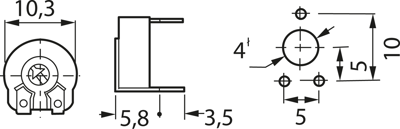

PTC 10 LV 100R Piher Trimmer Potentiometers Image 1

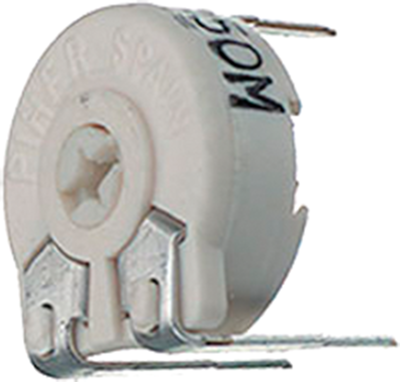

PTC 10 LV 100R Piher Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
0.2356 € *
Available in 4 Days: 535 pcs. - if ordered today
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2356 €
10 pcs.
0.1916 €
100 pcs.
0.1607 €
250 pcs.
0.1404 €
1000 pcs.
0.1238 €
*incl. VAT plus shipping costs
Subject to prior sale

Trimmer potentiometer, PTC 10 LV 100R,Piher

The PTC-10 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.

Features

  • Excellent performance
  • Cermet resistive element
  • Up to 16 mechanical detents for tactile feedback
  • Up to 100.000 life cycles
  • Wiper positioned at initial, 50 % or fully clockwise

Applications

  • Appliance program selection
  • Thermostat adjustment
  • Timer and control relays
  • Consumer electronics
  • Power tool controls
  • Test and measurement equipment
Technical specifications
Filter Property Value
Seeting on top
Contact distance RM 5/10
Tolerance ±20 %
Width 5 mm
Connection solder pin
Version cermet trimmer potentiometer
max. operating temperature 90 °C
Length 10 mm
Rotary range, electrical 220 °
max. number of revolutions 1
Mechanic rotary range 235 °
Assembly THT
Power 0.33 W
Temperature coefficient ±100 ppm/K
ohmic resistance 100 Ω
min. operating temperature -40 °C
Track Taper linear
Logistics
Property Value
Customs tariff number 85334010
Country of origin ES
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
