PTC 10 LH 1K0 | Piher

Cermet trimmer potentiometer, 1 kΩ, 0.33 W, THT, lateral, PTC 10 LH 1K0

Order No.: 66E430
EAN: 4099879889591
MPN:
PTC 10 LH 1K0
PTC10LH01-102A2020
Series: PTC10

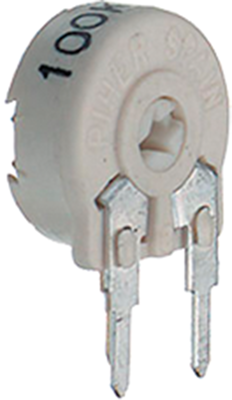

PTC 10 LH 1K0 Piher Trimmer Potentiometers Image 1

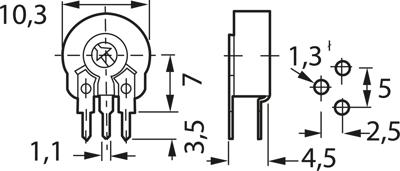

PTC 10 LH 1K0 Piher Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available in 4 Days: 3,881 pcs. - if ordered today
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.1781 €
100 pcs.
0.9758 €
250 pcs.
0.8449 €
1000 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Trimmer potentiometer, PTC 10 LH 1K0,Piher

The PTC-10 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.

Features

  • Excellent performance
  • Cermet resistive element
  • Up to 16 mechanical detents for tactile feedback
  • Up to 100.000 life cycles
  • Wiper positioned at initial, 50 % or fully clockwise

Applications

  • Appliance program selection
  • Thermostat adjustment
  • Timer and control relays
  • Consumer electronics
  • Power tool controls
  • Test and measurement equipment
Technical specifications
Connection solder pin
Width 4 mm
Seeting lateral
Mechanic rotary range 235 °
Length 10 mm
Tolerance ±20 %
Rotary range, electrical 220 °
min. operating temperature -40 °C
max. operating temperature 90 °C
Assembly THT
max. number of revolutions 1
Track Taper linear
Version cermet trimmer potentiometer
ohmic resistance 1 kΩ
Power 0.33 W
Contact distance RM 5/2.5
Temperature coefficient ±100 ppm/K
Logistics
Customs tariff number 85334010
Country of origin ES
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
