PT 15 NH 250R | Piher

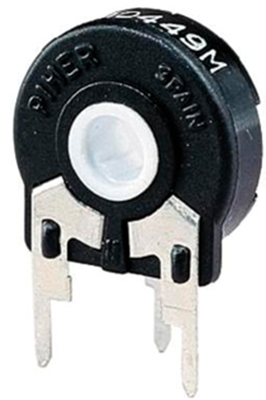

Layered trimmer potentiometer, 250 Ω, 0.25 W, THT, on top, PT 15 NH 250R
Unit Price (€ / pc.)
0.6069 € *
Available: 957 pcs.
Available in 4 Days: 200 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6069 €
50 pcs.
0.4998 €
250 pcs.
0.4284 €
1000 pcs.
0.3570 €
2500 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, PT 15 NH 250R,Piher
Potentiometer features a 15 mm resistive element made of carbon. Housed in a dust-proof enclosure and has a polyester substrate.
Technical specifications
| Filter | Property | Value |
|---|---|---|

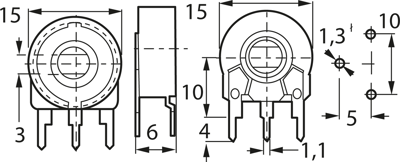

| Contact distance | RM 12.5/10 | |
| Seeting | on top | |
| Length | 15 mm | |
| Width | 7 mm | |
| Version | layered trimmer potentiometer | |
| ohmic resistance | 250 Ω | |
| Track Taper | linear | |
| Connection | solder pin | |
| max. operating temperature | 70 °C | |
| Rotary range, electrical | 240 ° | |
| min. operating temperature | -25 °C | |
| Power | 0.25 W | |
| Mechanic rotary range | 265 ° | |
| Tolerance | ±30 % | |
| Assembly | THT | |
| Temperature coefficient | ±300 ppm/K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
