PT 15 NH 100K | Piher
Layered trimmer potentiometer, 100 kΩ, 0.25 W, THT, lateral, PT 15 NH 100K
Unit Price (€ / pc.)
1.1781 € *
Available: 588 pcs.
Available in 4 Days: 2,277 pcs. - if ordered today
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
10 pcs.
0.7378 €
50 pcs.
0.6426 €
250 pcs.
0.5474 €
1000 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

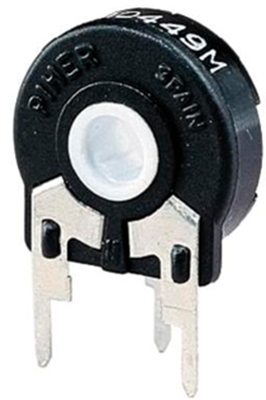

Trimmer potentiometer, PT 15 NH 100K,Piher
Potentiometer features a 15 mm resistive element made of carbon. Housed in a dust-proof enclosure and has a polyester substrate.

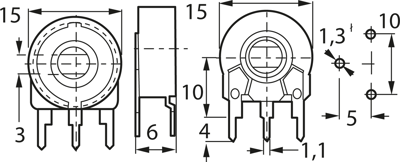

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rotary range, electrical | 240 ° | |
| min. operating temperature | -25 °C | |
| Track Taper | linear | |
| max. operating temperature | 70 °C | |
| Version | layered trimmer potentiometer | |
| Connection | solder pin | |
| Assembly | THT | |
| Seeting | lateral | |
| Power | 0.25 W | |
| Tolerance | ±30 % | |
| Temperature coefficient | ±300 ppm/K | |
| Width | 6 mm | |
| Mechanic rotary range | 265 ° | |
| Contact distance | RM 10/5 | |
| Length | 15 mm | |
| ohmic resistance | 100 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
