PT 15 LV 1M0 | Piher

Layered trimmer potentiometer, 1 MΩ, 0.25 W, THT, on top, PT 15 LV 1M0

Order No.: 66E672
EAN: 4099879890498
MPN:
PT 15 LV 1M0
PT15LV02-105A2020--S
Series: PT15

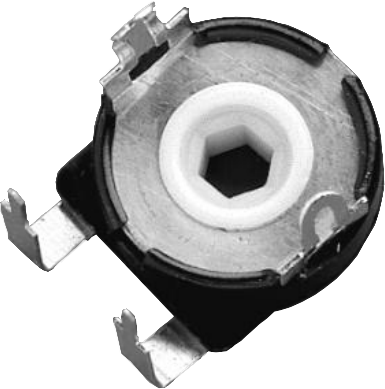

PT 15 LV 1M0 Piher Trimmer Potentiometers Image 1
PT 15 LV 1M0 Piher Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available in 4 Days: 1,949 pcs. - if ordered today
Total Price:
176.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
0.4403 €

Trimmer potentiometer, PT 15 LV 1M0,Piher

Potentiometer features a 15 mm resistive element made of carbon. Housed in a dust-proof enclosure and has a polyester substrate.

Technical specifications
Filter Property Value
Seeting on top
Contact distance RM 12.5/10
Tolerance ±20 %
Width 7 mm
Connection solder pin
Version layered trimmer potentiometer
max. operating temperature 70 °C
Length 15 mm
Rotary range, electrical 240 °
Mechanic rotary range 265 °
Assembly THT
Power 0.25 W
Temperature coefficient ±300 ppm/K
ohmic resistance 1 MΩ
min. operating temperature -25 °C
Track Taper linear
Logistics
Property Value
Customs tariff number 85334010
Country of origin ES
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
