SM-10-H 2,5 B-ASD 100K | Piher
Carbon potentiometer, 100 kΩ, 0.15 W, linear, solder pin, SM-10-H 2,5 B-ASD 100K
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8679 € *
Standard delivery time from the manufacturer is: 9 Weeks
Carbon potentiometer, SM-10-H 2,5 B-ASD 100K, Piher
Enclosed in a plastic housing, the panel control with an integrated shaft offers a cost-effective control option.
Features
- Excellent low price control potentiometer
- IP54 protection according to IEC 60529

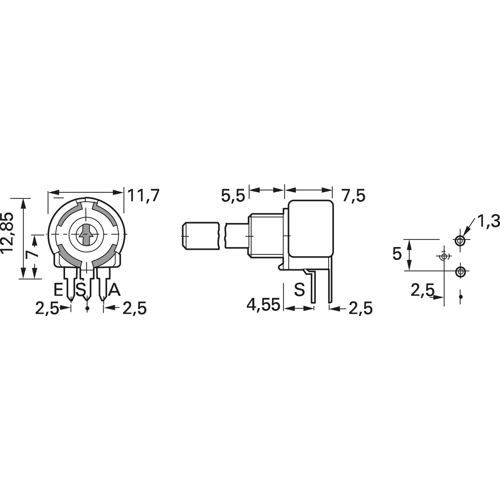

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | carbon potentiometer | |
| ohmic resistance | 100 kΩ | |
| Power | 0.15 W | |
| Assembly | angled | |
| Track Taper | linear | |
| axle diameter | 4 mm | |
| Connection | solder pin | |
| Contact distance | RM 5/2.5 | |
| Length | 13 mm | |
| Width | 11.7 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
